Chapter4–ConfiguringYourMultiVOIP

64 MultiVOIP®Voice/FaxoverIPGateways

SPP

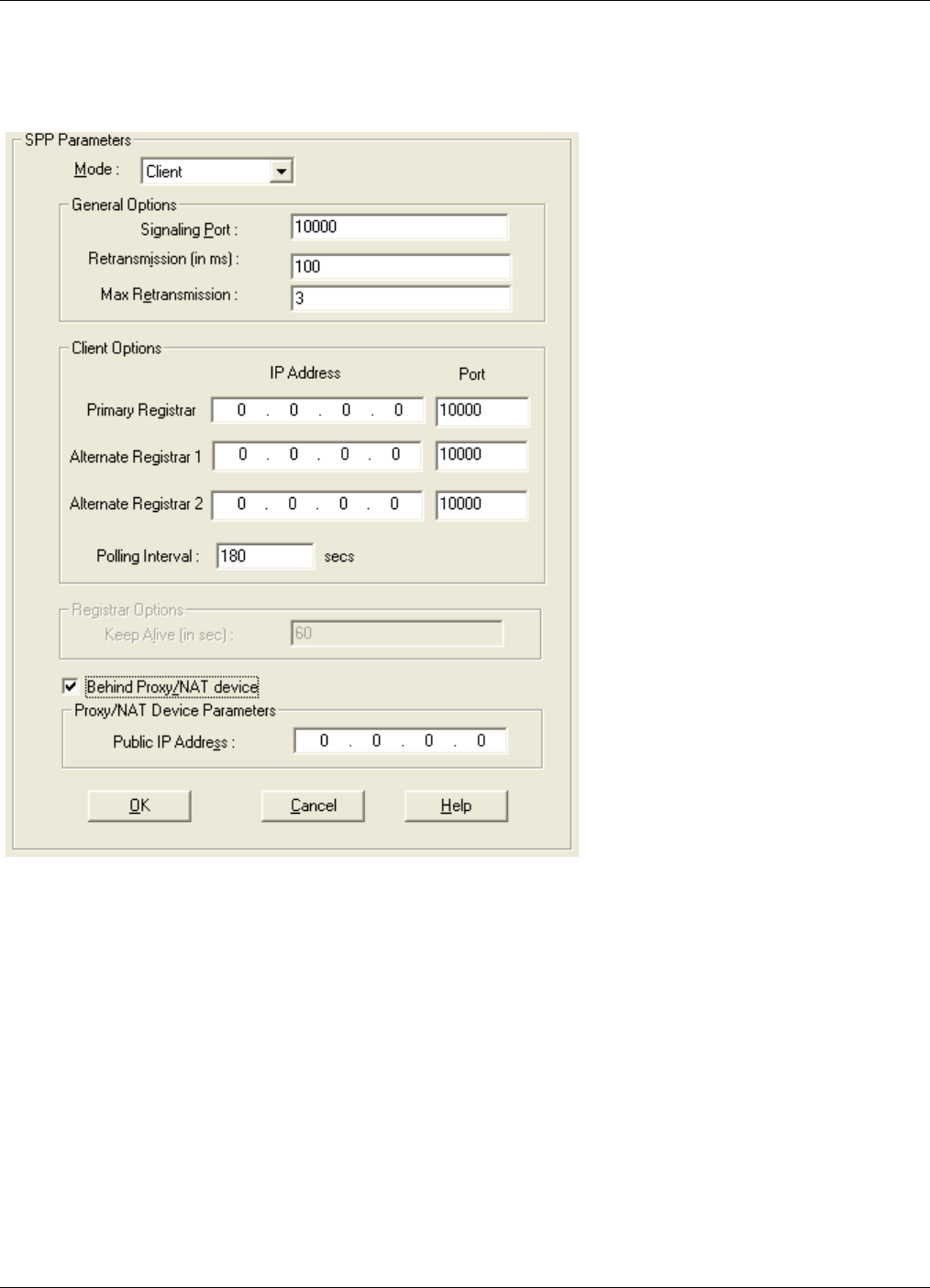

Multi‐TechdevelopedSinglePortProtocolfordynamicIPaddressingwhenthefeatureissettoRegistrar/Client

mode.Theothersetting,Directmode,hasIPaddressesassignedtothegateways.Thetablebelowdescribes

fieldsinthegeneralSPPCallSignalingwindow.The–SSmodelsdonotsupportSPP.




