TalkAnytime User Guide Mechanical Installation & Cabling

Rack Mounting Instructions for TA2410 & TA3010

The TalkAnytime units can be mounted in an industry-standard EIA 19-inch rack enclosure, as shown in

Figure 3-2.

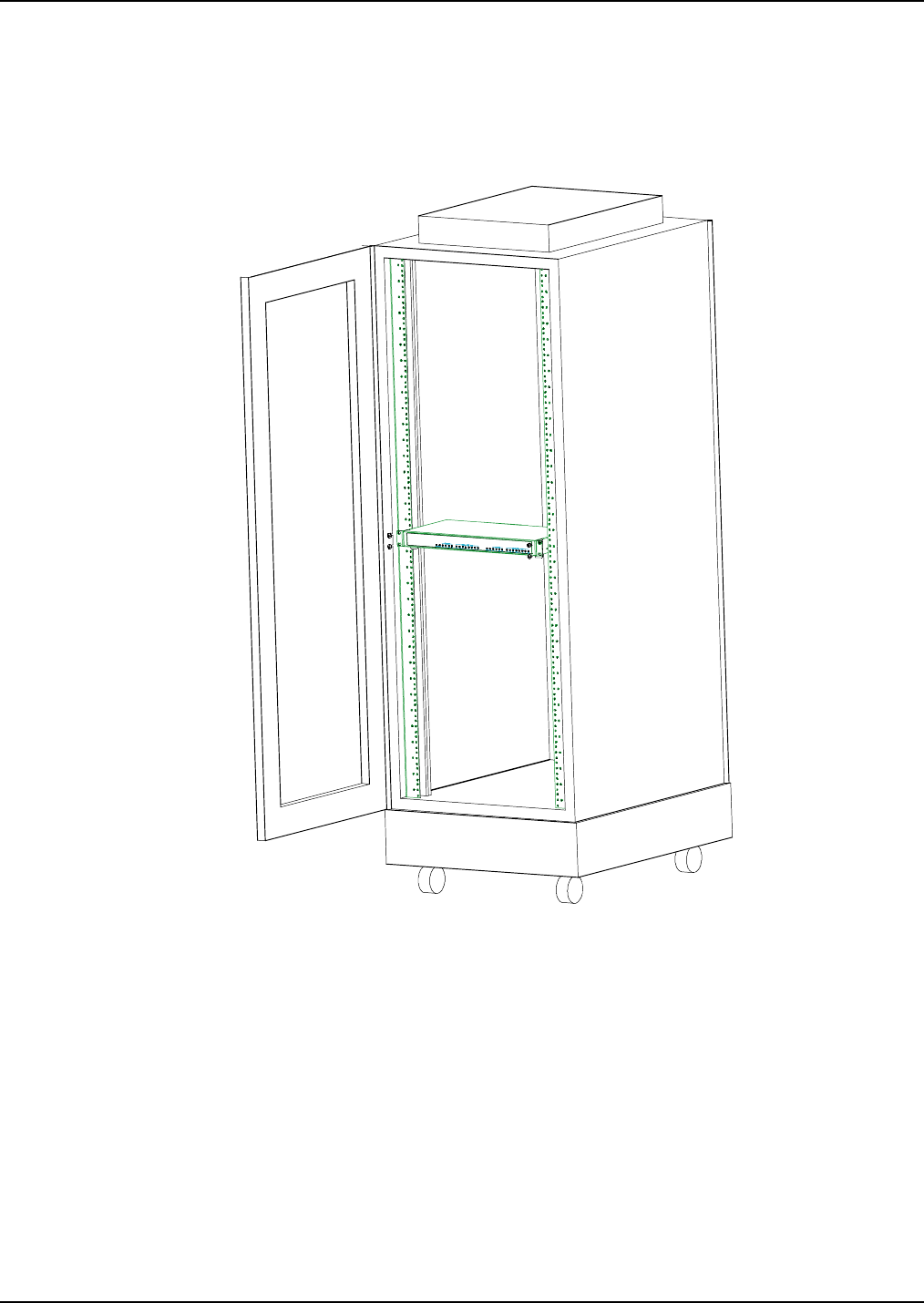

Figure 3-2: Rack-Mounting (TA2410 or TA3010)

Safety Recommendations for Rack Installations

Ensure proper installation of the unit in a closed or multi-unit enclosure by following the recommended

installation as defined by the enclosure manufacturer. Do not place the unit directly on top of other

equipment or place other equipment directly on top of the unit. If installing the unit in a closed or multi-

unit enclosure, ensure adequate airflow within the rack so that the maximum recommended ambient

temperature is not exceeded. Ensure that the unit is properly connected to earth ground by verifying that it

is reliably grounded when mounted within a rack. If a power strip is used, ensure that the power strip

provides adequate grounding of the attached apparatus.
