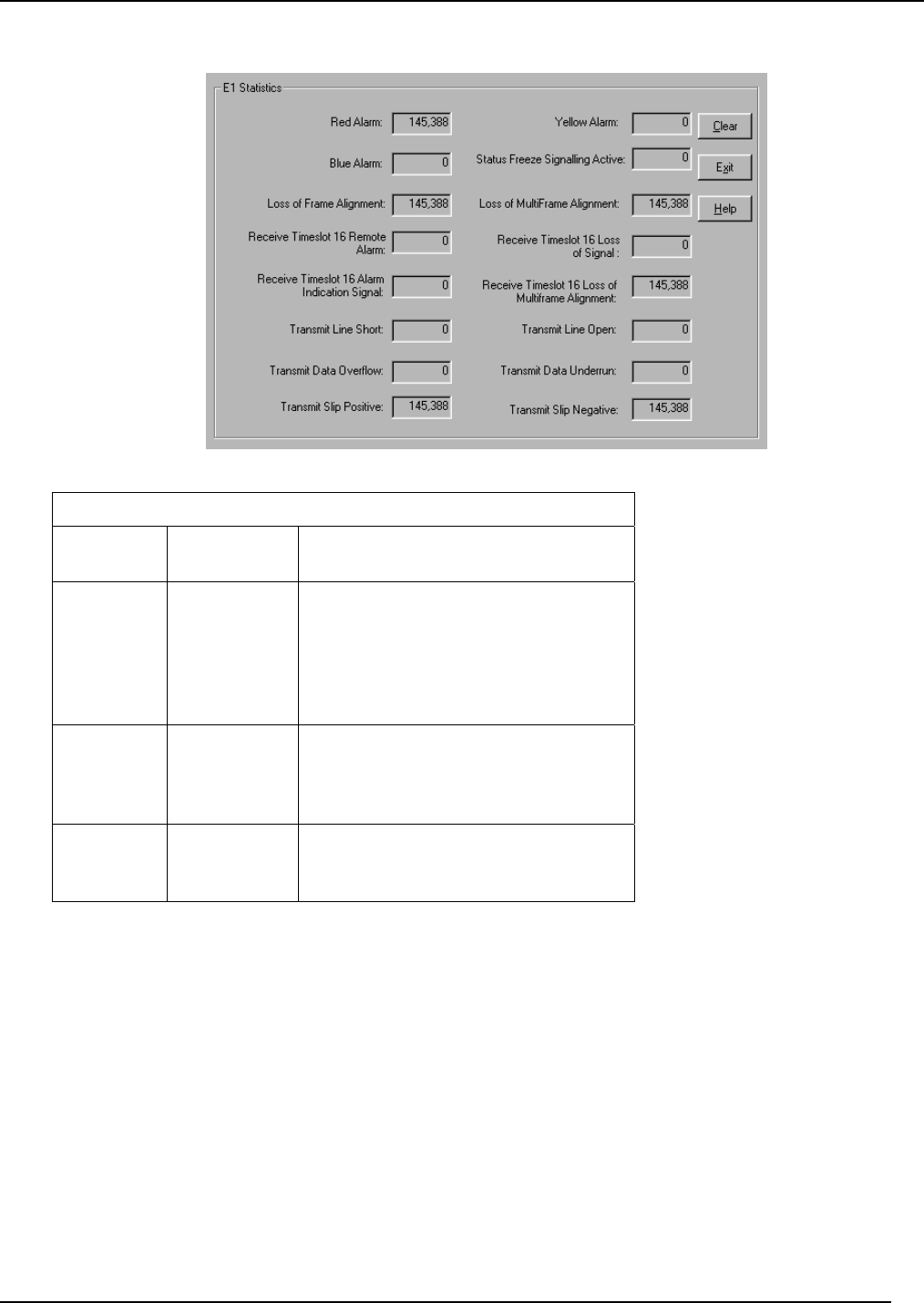

E1 Statistics Screen

E1 Statistics: Field Definitions

Field

Name

Values Description

Red Alarm Integer tally of

alarms

counted since

last reset.

The alarm condition declared when a

device receives no signal or cannot

synchronize to the signal being received. A

Red Alarm is generated if the incoming

data stream has no transitions for 176

consecutive pulse positions.

Blue Alarm Tally since last

reset.

Alarm signal consisting of all 1’s (including

framing bit positions) which indicates

disconnection or failure of attached

equipment.

Loss of

Frame

Alignment

Tally since last

reset.

Loss of data frame synchronization.
