TalkAnytime User Guide PhoneBook & URL Configuration
129
Calls into a Phone Pool

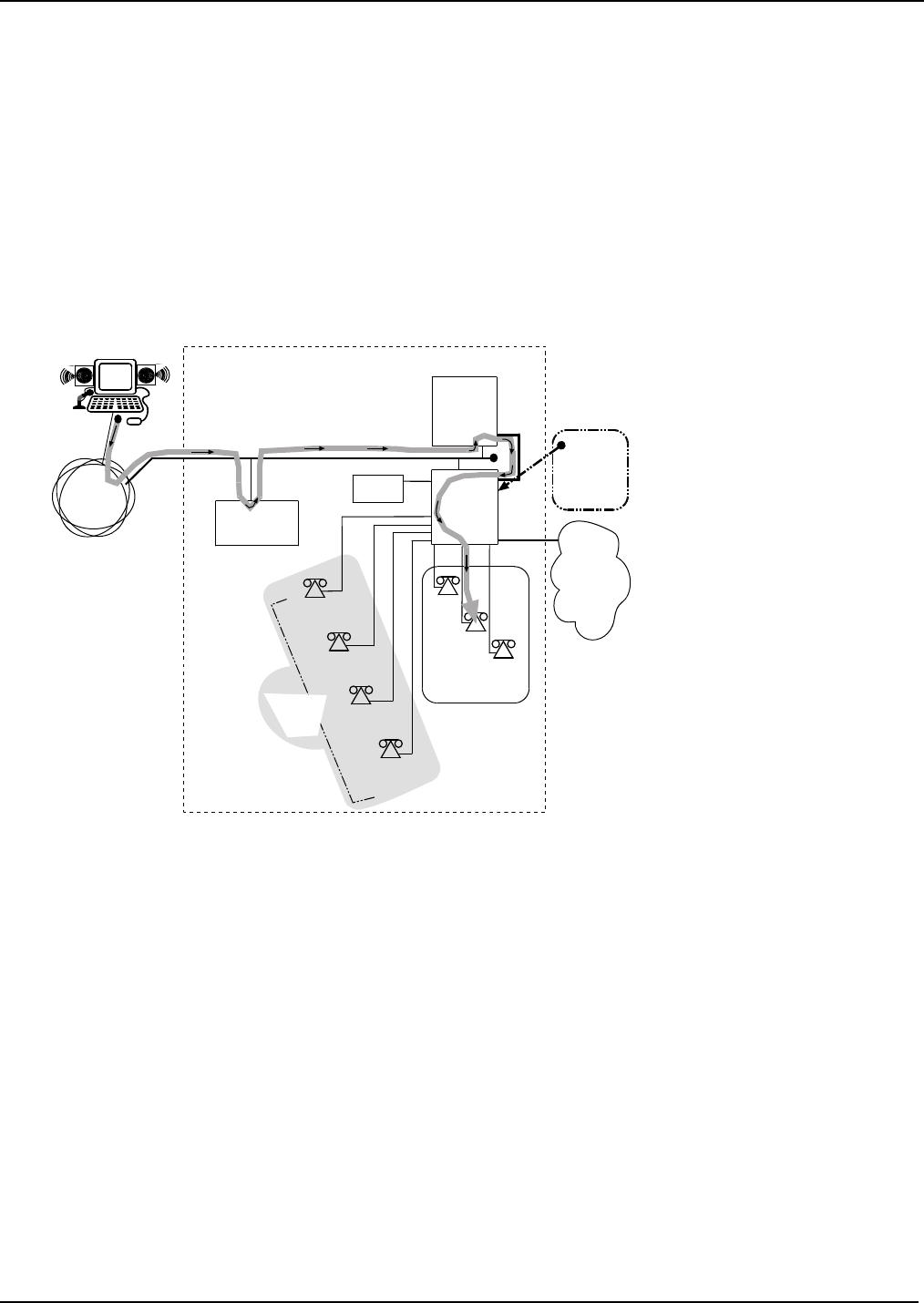

User-A Calls Sales Department. The drawing below shows a call coming into the Whirlygig Sales
Department from a prospective customer. The PBX is set up to ‘hunt’ among a group of extensions allotted
to the Sales Department. The TalkAnytime unit directs calls originating through the Whirlygig web server
to the PBX and into the phone pool of sales representatives.
The main settings of the TalkAnytime Configuration Program, Phonebook, and web server URL that are
required to implement this capacity are shown in the second drawing below. Note that, especially for the
T1/E1/ISDN parameters, your settings must simply conform to the requirements of your PBX; there is no
set of routine default values that can be depended upon to be widely applicable.
Sales
Dept.
Whirlygig Gadget
Company Offices
PBX
Talk
Anytime
TA2410
Ethernet LAN
Web Server
IVR
Home PC User A
Customer
Service
Dept.
Internet
x8654
Gronplostramax
Specialist
x8653
Fridnorpulizer
Specialist
x8652
Zanfraditron
Specialist
x8651
Comblasticator
Specialist
x7303
x7302
x7301
T1
717-
466-0000
PBX is
set to ‘hunt’
among
extensions
7300-7399.
65.129.90.200
PSTN
Path of Call
Call
starts
here.
