TalkAnytime User Guide Operation & Maintenance

175

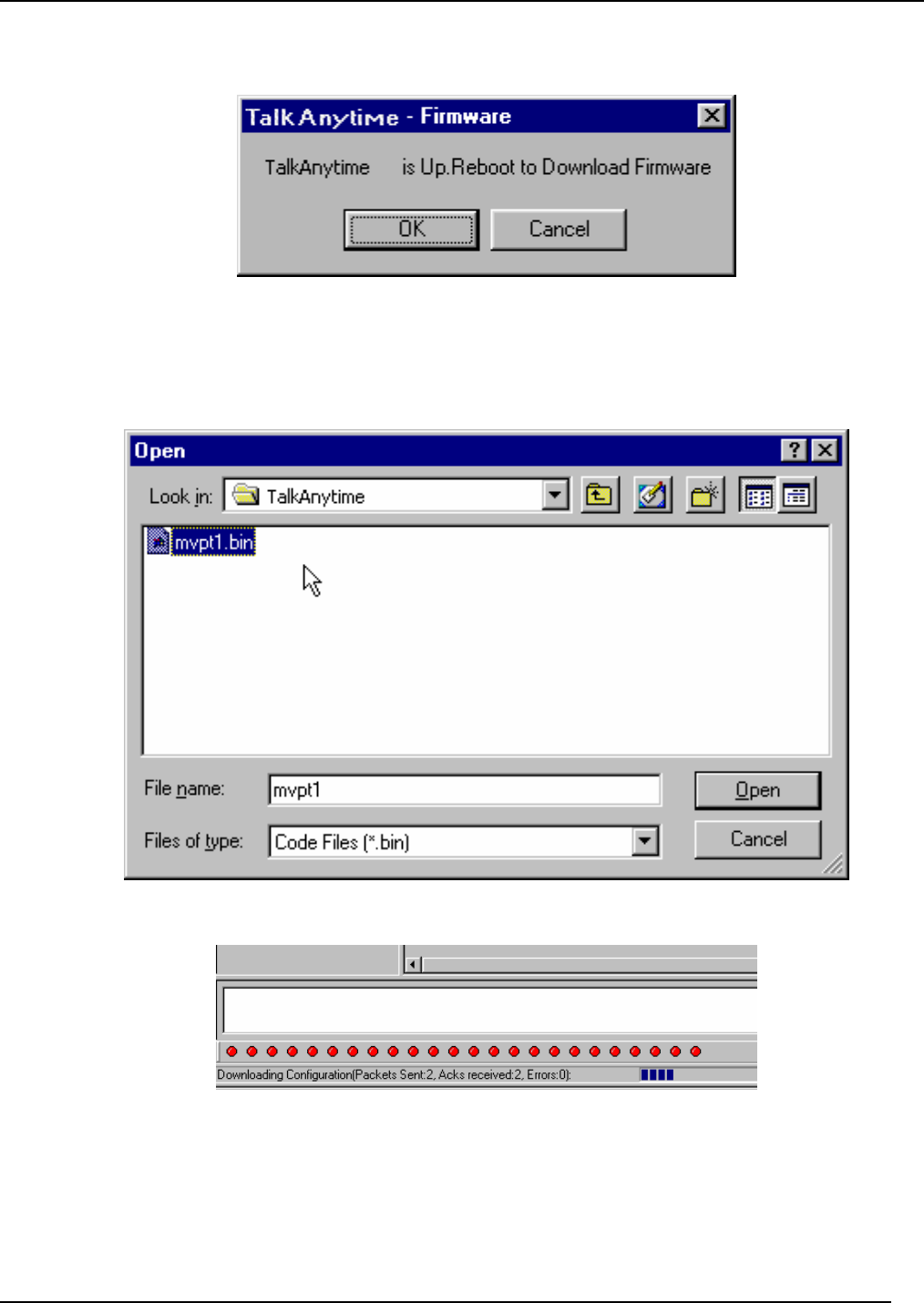

4. The TalkAnytime ___- Firmware screen appears saying

“TalkAnytime [model number] is up. Reboot to Download Firmware?”

Click OK to download the firmware.

The “Boot” LED on the TalkAnytime will light up and remain lit during the file transfer process.

5. The program will locate the firmware “.bin” file in the TalkAnytime directory. Highlight the correct

(newest) “.bin” file and click Open.

6. Progress bars will appear at the bottom of the screen during the file transfer.

The TalkAnytime’s “Boot” LED will turn off at the end of the transfer.

7. The Download Firmware procedure is complete.
