RouteFinder Configured as a Secure PPTP Server with a VPN PPTP Remote Client

Multi-Tech Systems, Inc. RF760/660/600VPN PPTP Remote Client Reference Guide (S000248C) 6

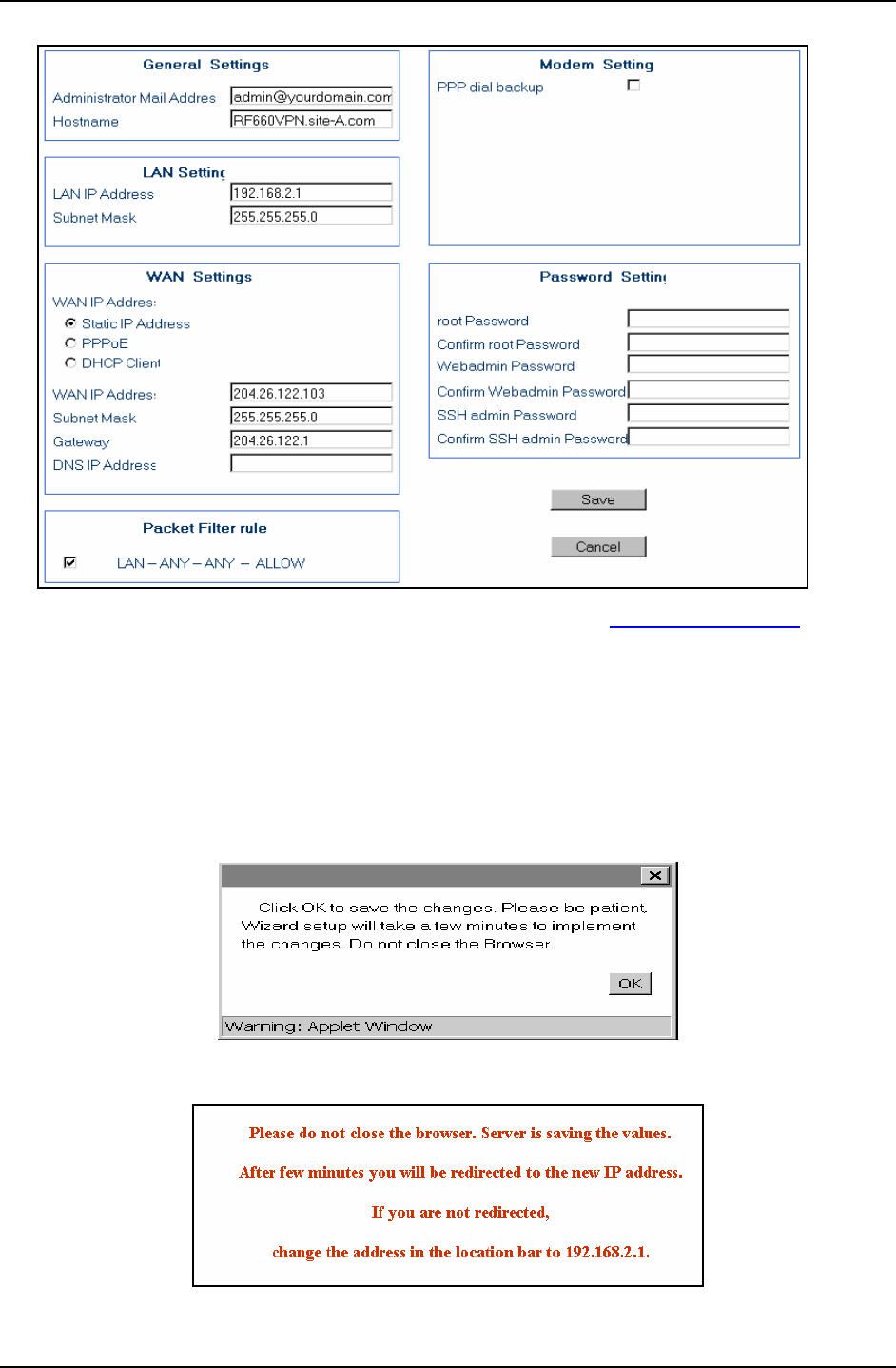

8. Click on Wizard Setup.

a) Enter the Administrator Email Address (can be anything). (Example: [email protected]

)

b) Enter the Host name for the RouteFinder (can be anything). (Example: RF660VPN.site-A.com)

c) LAN IP Address and Subnet Mask are set to the defaults. This should be acceptable for Site A.

d) Enter the WAN IP Address. This is the PUBLIC STATIC IP address. (Example: 204.26.122.103)

e) Change the Gateway IP address; this is the IP address of the router that connects to the Internet. (Example:

204.26.122.1)

f) Place a checkmark in the box for the Packet Filter Rule: LAN-ANY-ANY-ALLOW. This will enable this rule.

g) Specify any changes to the passwords that you feel are necessary.

h) Click Save to save the settings you just entered.

i) The following screen displays prompting you to save your changes. Click OK.

j) The following screen displays. Saving your settings will take a few minutes. Since you kept the LAN IP

address the same, it is not necessary to change this system to a new IP address.
