2

-

6

Table 2-1 (cont'd)

ISI Configuration and Installation Procedure

Step Procedure

6 Install the ISI card into the

selected expansion slot(s) in the

same manner as any other add-

on card, as instructed in your

computers documentation.

7 Fasten the retaining bracket to

the computer chassis and replace

the cover.

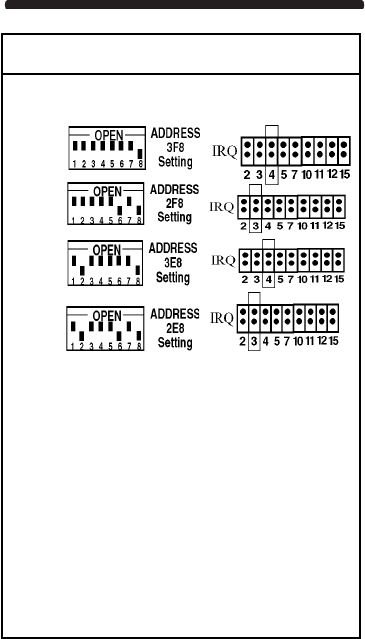

Com Port I/O Address Setting IRQ Level

COM1

COM2

COM3

COM4

Figure 2-3. I/O Address and IRQ Level Settings
