AVIDdirector-M2M™ Technical Reference Guide

February 5, 2009 ©AVIDwireless 2004-2009 All Rights Reserved Page 55 of 55

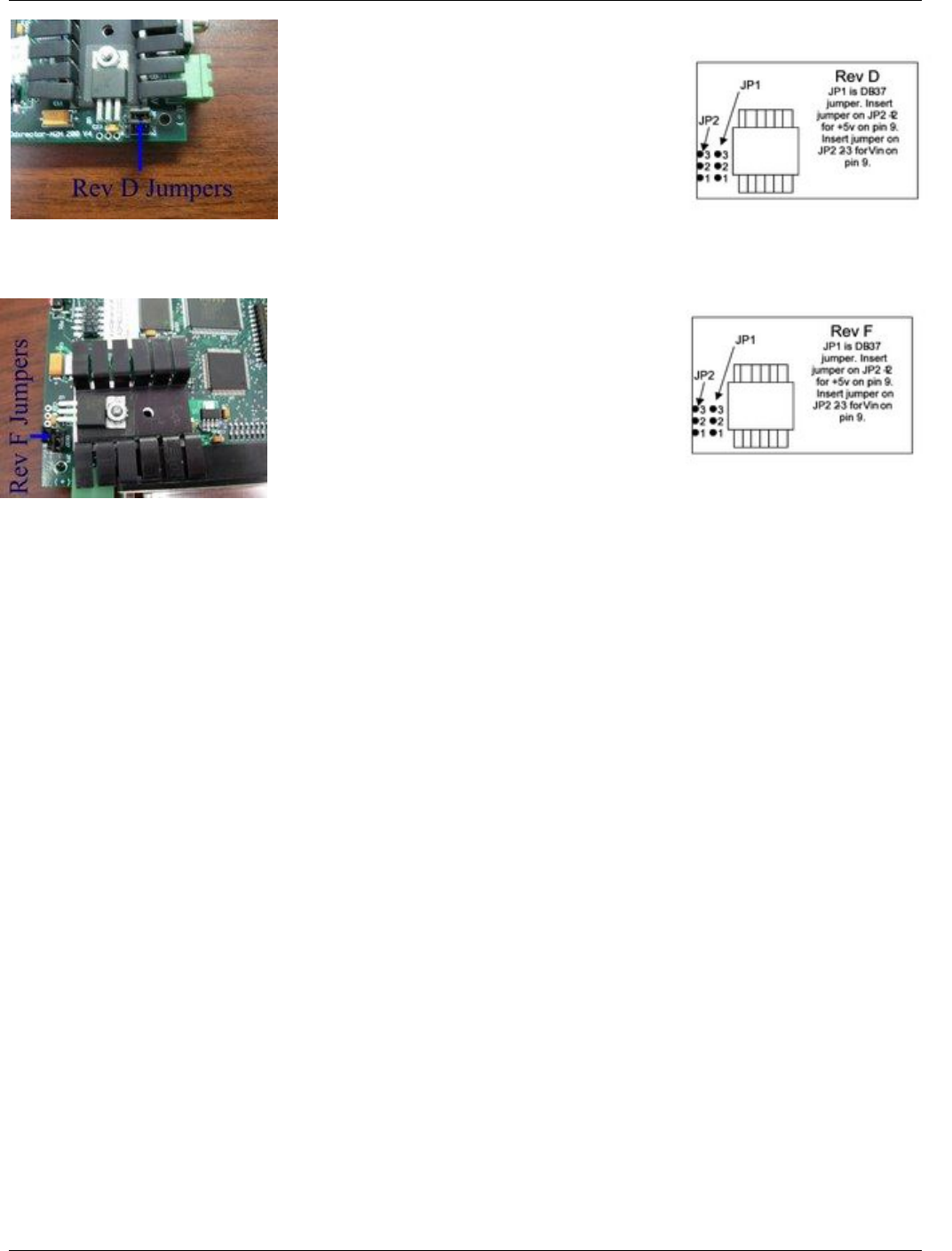

Rev D: JP1 is the DB37 pin 20 jumper that

supplies the VRail output voltage with

maximum current of 0.5A. JP1 1-2

connects VRail to Vin (nominally 12VDC),

JP1 2-3 connects VRail to +5V.

JP2 connect to DB-9 pin 9 to supply

voltage at 0.5A (peak 2A) JP2 1-2 provides

Vin on pin 9. JP2 2-3 provides +5V on pin

9.

Rev F: JP1 is the DB37 pin 20 jumper that

supplies the VRail output voltage with

maximum current of 2A. JP1 1-2 connects

VRail to Vin (nominally 12VDC), JP1 2-3

connects VRail to +5V.

JP2 connects to DB-9 pin 9 to supply

voltage at 0.5A (peak 2A) JP2 1-2 provides

Vin on pin 9. JP2 2-3 provides +5V on pin 9.
