AVIDdirector-M2M™ Technical Reference Guide
February 5, 2009 ©AVIDwireless 2004-2009 All Rights Reserved Page 5 of 55
Hardware Design
The device contains two processors: an Imsys Cjip Java processor and a Cypress Microsystems PSoC (System
On a Chip). The Cjip handles the application and network functions and the PSoC the hardware interfacing.

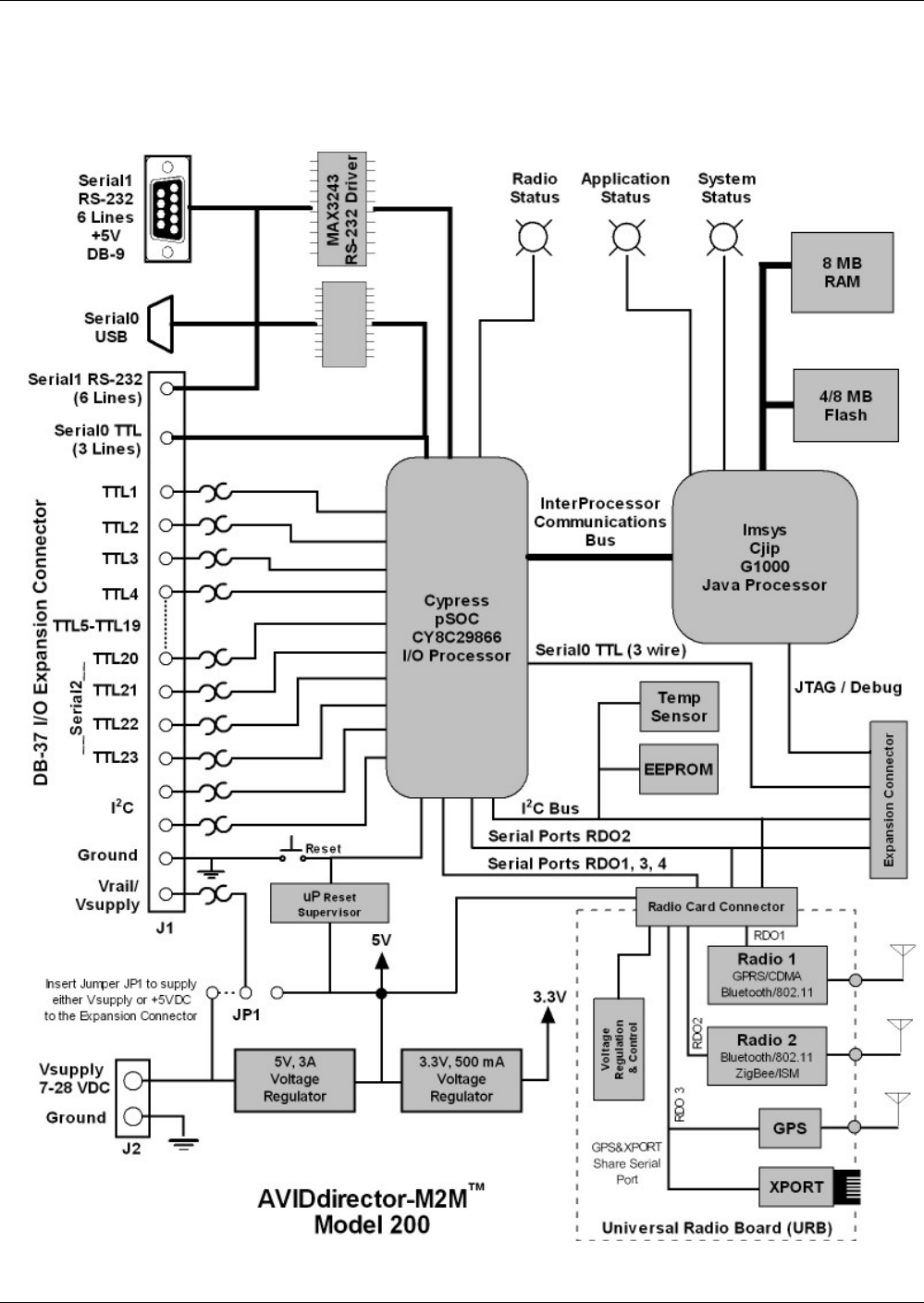

A block diagram of the system is as shown:
Figure 2 AVIDdirector-M2M Architecture
