Appendix B - Cabling Diagrams

Appendix B - Cabling Diagrams

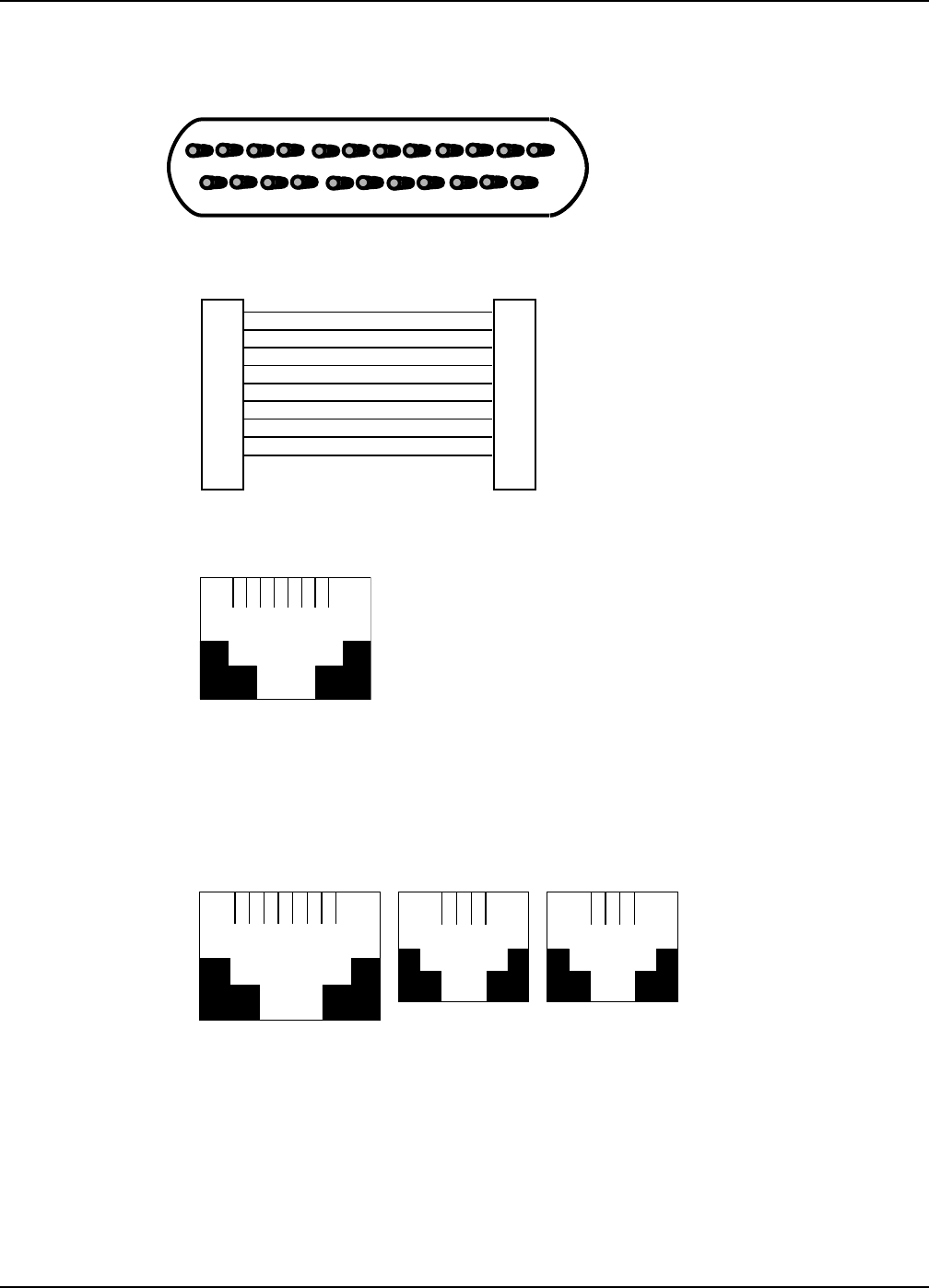

Command Port Cable

13 12 11 10 9 8 7 6 5 4 3 2 1

25 24 23 22 21 20 19 18 17 16 15 14

1

2

3

4

5

6

7

8

9

DB-25

8

3

2

20

7

6

4

5

22

DB-9

LAN Cable

1 2 3 4 5 6 7 8

Pin Circuit Signal Name

1 TD+ Data Transmit Positive

2 TD- Data Transmit Negative

3 RD+ Data Receive Positive

6 RD- Data Receive Negative

Voice/Fax Channel Connectors

1 2 3 4 5 6 7 8

2 3 4 5 2 3 4 5

Pin Connections

E&M Description FXO Description FXS Description

1M

2 E 2 N/C 2 N/C

3 T1 3 Ring 3 Tip

4 R 4 Tip 4 Ring

5 T 5 N/C 5 N/C

6R1

7SG

8SB
