For more information about the usage of the AT command type AT /? in a
command line box. You will get a window like the following:

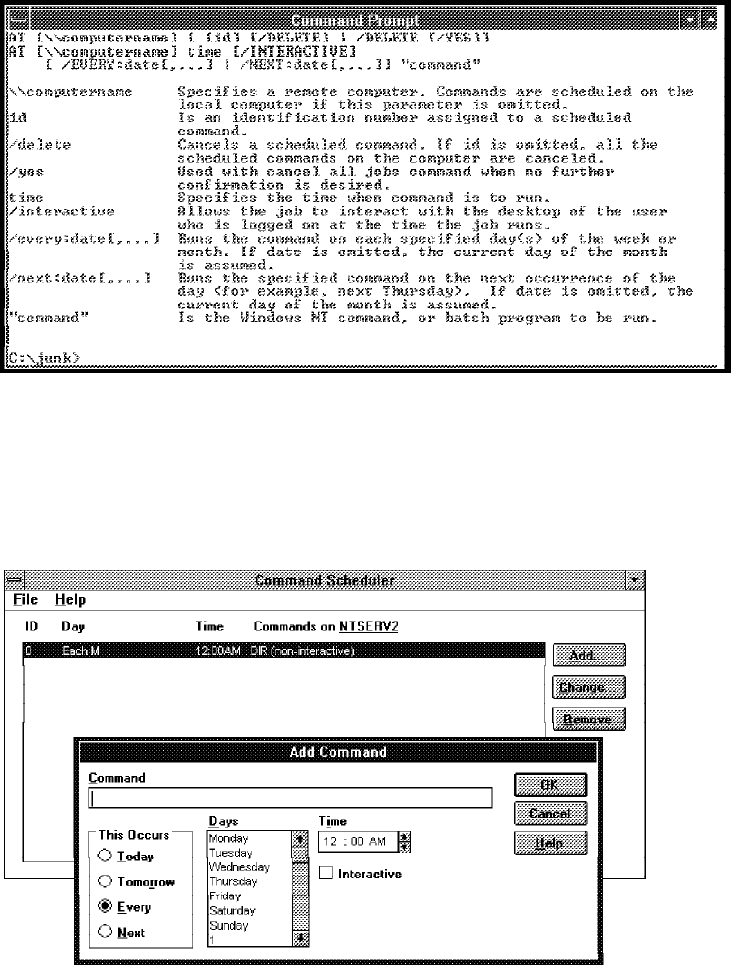

Figure 111. Fields for the AT Command
With the Windows NT Resource Kit comes a graphical user interface to set,
change or delete job schedules. The program name is WINAT.EXE. The
Command Scheduler displays the current settings and allows you to create a
new job and delete or change an existing job.
Figure 112. Command Scheduler GUI
Before you can access the job scheduling database of a system, the scheduler
service must be started and you must have the rights to add or perform changes
to scheduled jobs. To start the scheduler service remotely, see 2.2.3, “Windows
NT Server Manager” on page 58.
Chapter 2. NT Systems Management Functions 85
