− Select Export Database Information via ODBC and check the boxes if you
would like to include the System Profile and/or Syslevel information.

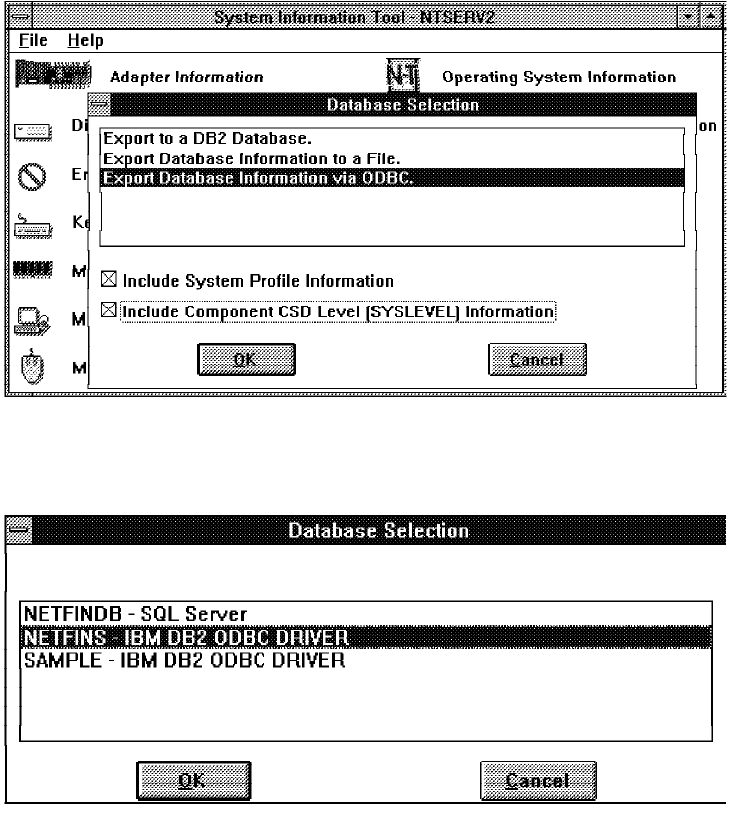

Figure 170. System Information - Database Export
− Select the database to export to and click on OK to save the data.
Figure 171. Database Selection
•
System Profile
The export of the System Profile data can be included while saving data from
System Information.
•
Software Inventory
Software Inventory lets you save the search results to the database. To save
this data do the following:
− Run the Software Inventory service.
− From the Software Inventory service top menu choose Inventory and
select Export to Database.
− Select Export Database Information via ODBC.
− Select the database to export to and click on OK to save the data.
•
System Monitor Service
Chapter 5. TME 10 NetFinity Database Support 141
