Serial-to-Bluetooth Adapter

Installation and Cabling

Attaching the MultiConnect Adapter to a Fixed Location

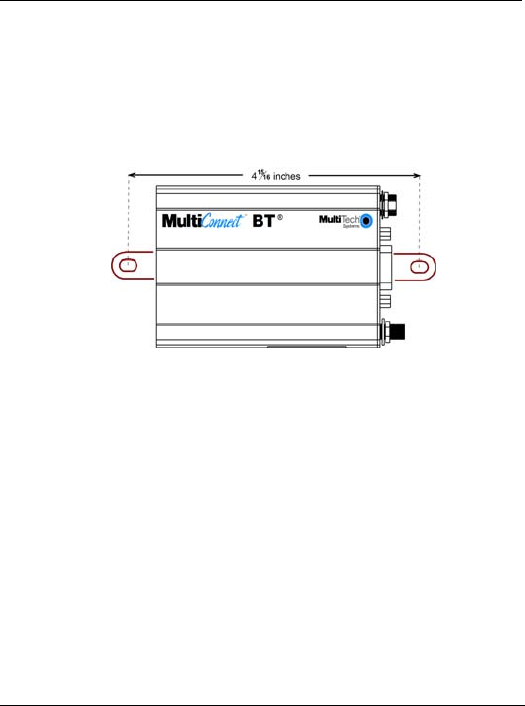

1. Typically, the MultiConnect is mounted against a flat

surface with two mounting screws. Drill the mounting

holes at the desired mounting location. The mounting

holes must be separated by 4-15/16 inches center-to-

center.

2. To attach the mounting bracket, slide it into the

corresponding slot on the back of the MultiConnect

chassis.

3. Attach the adapter to the surface with two screws.
