ISI Configuration and Installation Procedure

Table 2-1 (cont'd)

Step Procedure

Com Port I/O Address Setting IRQ Level

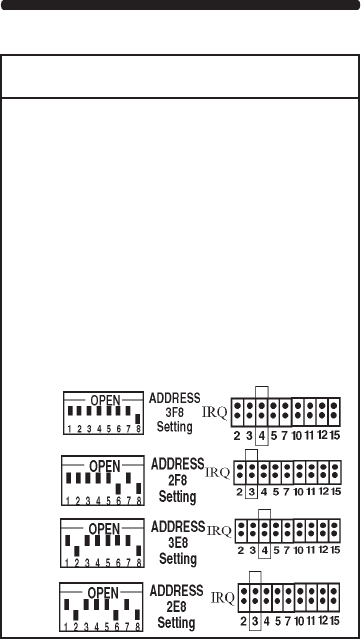

Figure 2-3. I/O Address and IRQ Level Settings

COM1

COM2

COM3

COM4

4b Select a unique I/O Address for

your ISI551PC card using the

block of 8-position DIP-Switches

on your ISI circuit board. Figure

2-3 shows various I/O

addressing and IRQ settings.

5 Record any changes you

make to these settings and

keep them handy for the

driver installation.
