Multi-Tech Systems, Inc.

RF550/560VPN Reference Guide – RF550/560VPN Using a NAT Box with IPSec Pass-Through 42

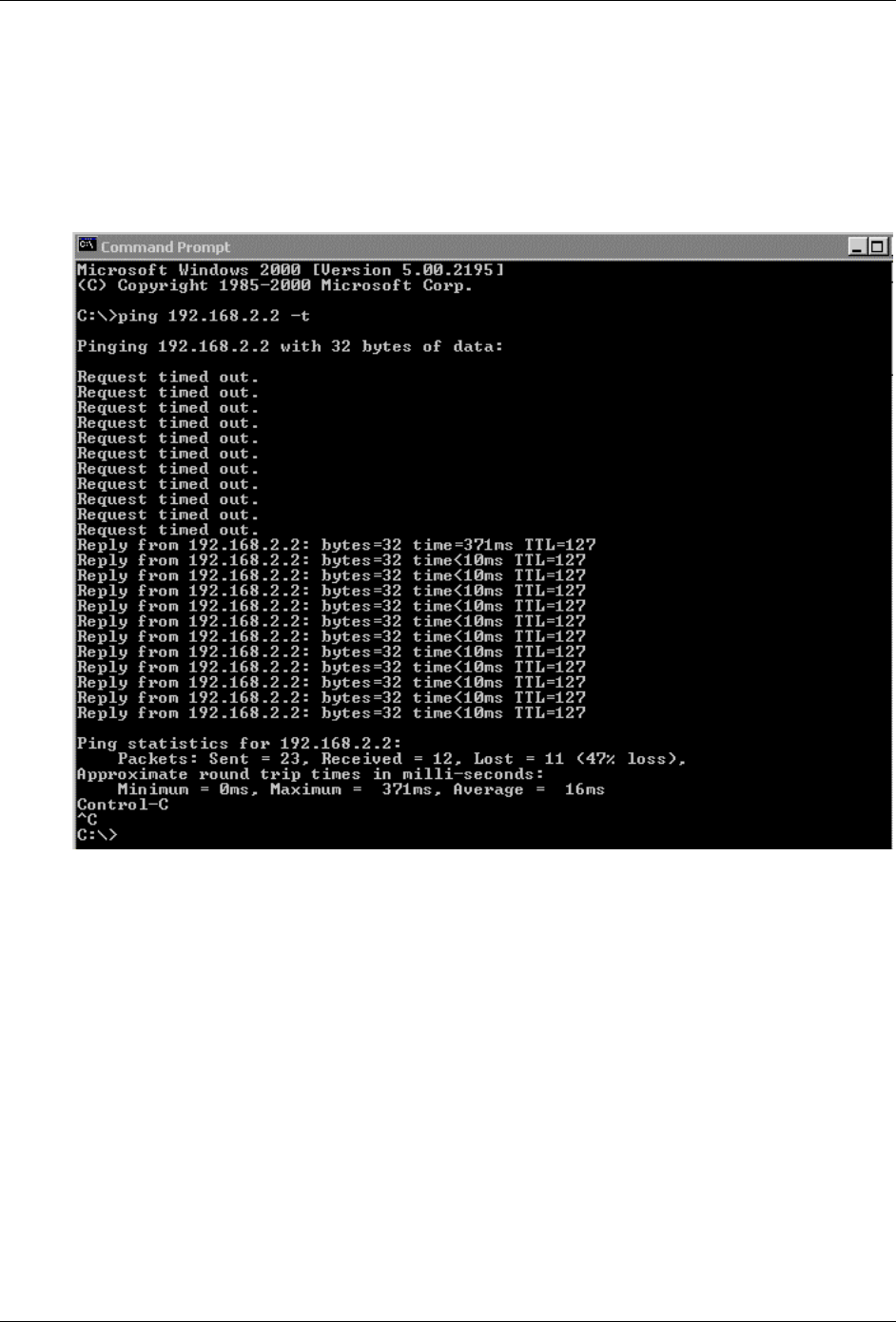

d) If this is successful, try to PING a workstation connected to the LAN port of the

RF550VPN/RF560VPN at Site A.

Example: PING 92.168.2.2 <return>

You should see four successful packet transmit/receive statements. If you do not, try several

more times. You may see several initial failures while the two RouteFinders make a secure

connection.

Note: If any of these tests fail then verify that the workstations are connected to the LAN ports of the

RF550VPN/RF560VPNs. The LAN port LINK LED should be on and the ACT LED should blink on

each time you PING the RF550VPN/RF560VPN. Verify the WAN port at each Site is connected

properly. Also verify that the RF550VPN/RF560VPNs and NAT Box are configured properly.
