Chapter 4 – Configuration Examples

Multi-Tech Systems, Inc. RF760/660/600VPN Quick Start Guide (82013762L) 19

Set Packet Filters

Site A Configuration: RouteFinder VPN in the Home Office

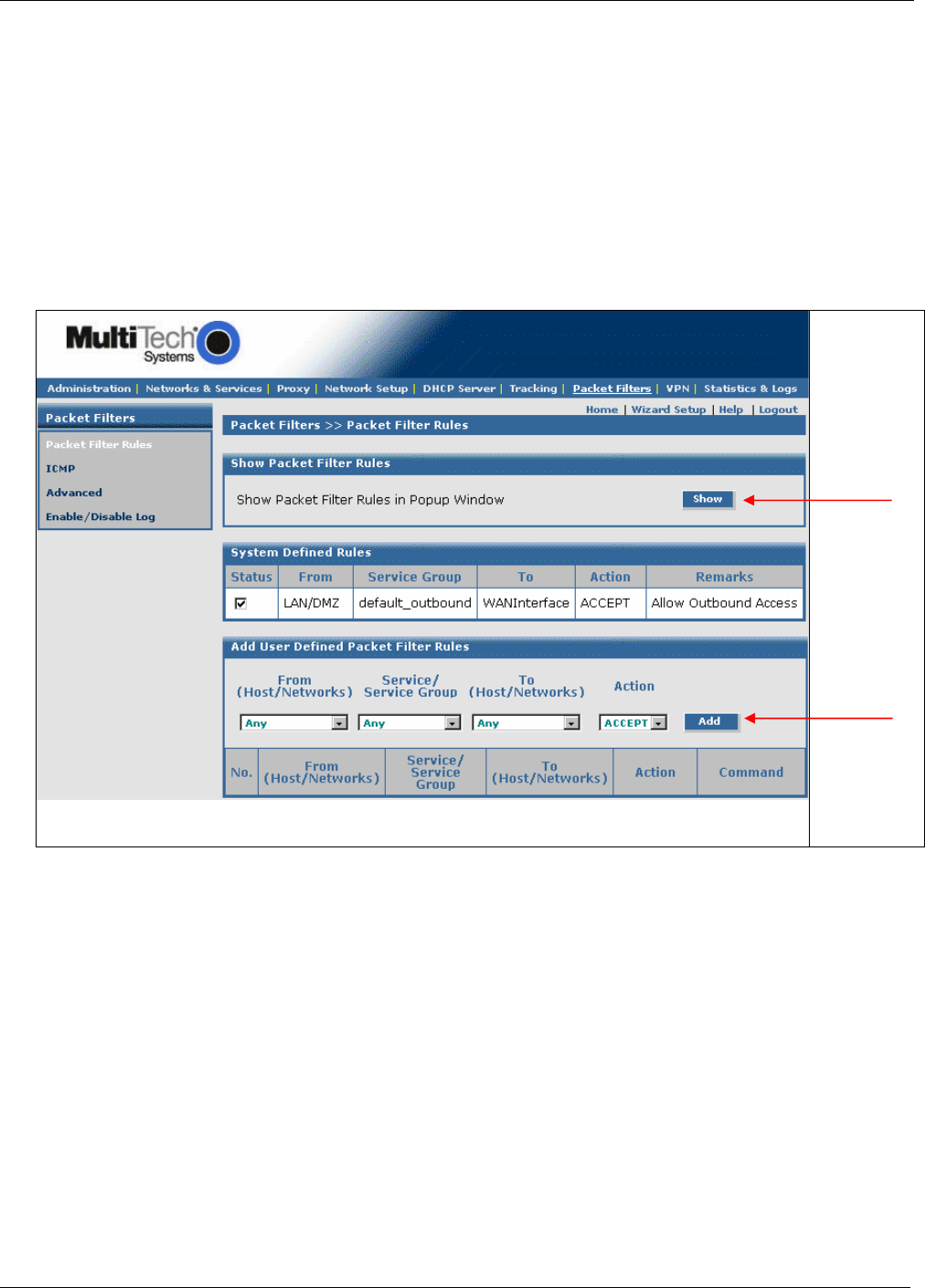

Establish remote access filtering: click on Packet Filters > Packet Filter Rules.

1. For the Remote LAN at the branch office to access the RouteFinder’s LAN, select the following parameters for the

Remote LAN rule:

RemoteLAN – Any – Any – Accept

Note: The rule LAN – Any – Any – Accept, which displays at the bottom of the screen, was created when you

performed your initial setup using the Setup Wizard.

The rule entered in the Setup 1 lan ANY ANY ACCEPT Edit|Delete|Move

Wizard displays in this table

View Rules

by clicking

the Show

button.

Set

Parameters

here

1 2 ... 14 15 16 17 18 19 20 21 22 23 24 ... 27 28
