Chapter 5: FaxFinder Operation

Multi-Tech Systems, Inc. FaxFinder Admin User Guide 85

Delete

Selecting this will delete the FaxFinder unit from use by this software. There is a delete confirmation

window that will pop-up prior to actual deletion.

Set as Default

Selecting set as default will make the unit clicked the default unit for sending faxes through this

software.

Properties

Selecting properties will bring up a window showing the FaxFinder unit type (FFx20 or FFx30), the IP

address the unit is using and your user name and password. The password is replaced by asterisks for

security.

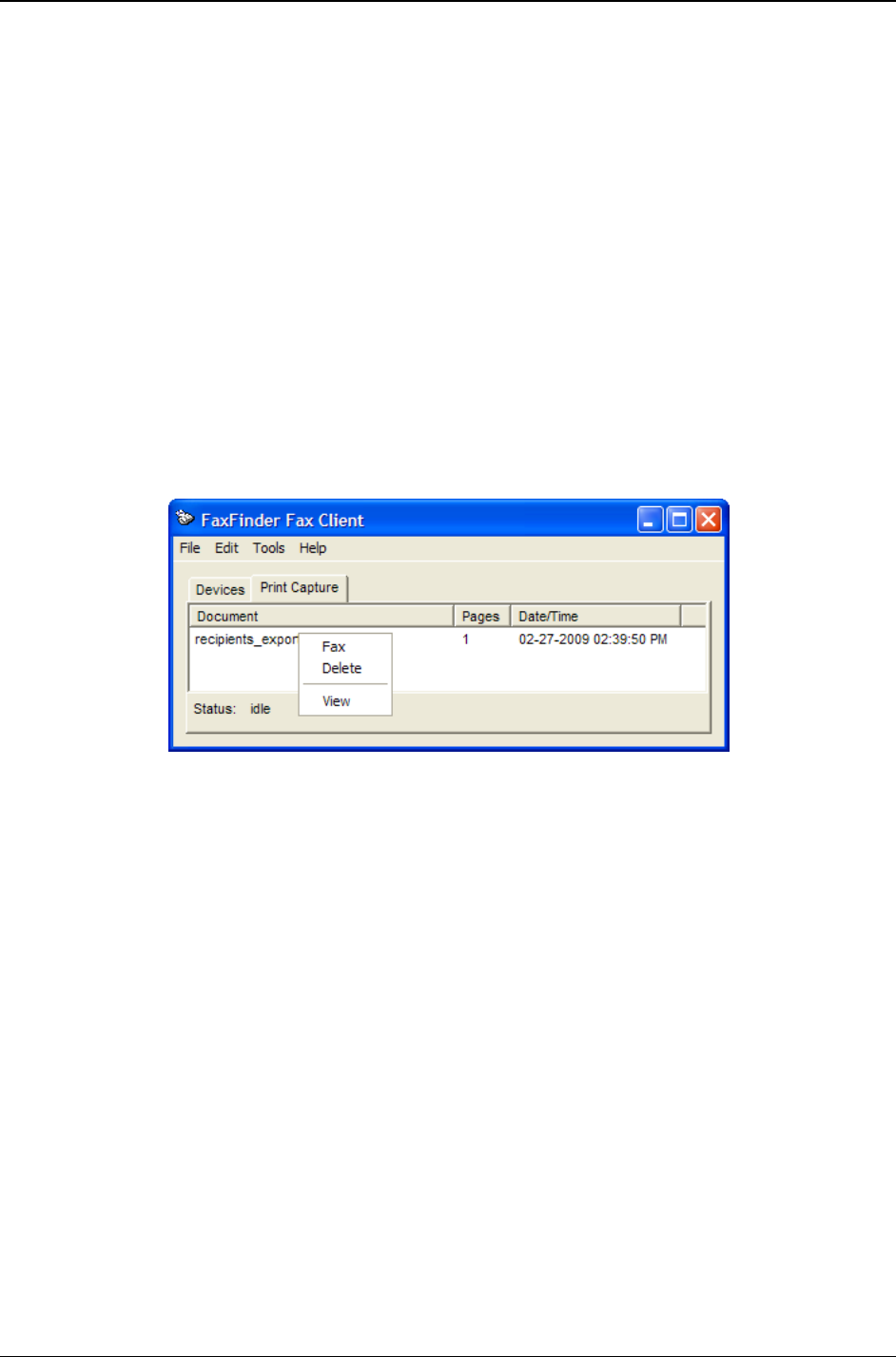

Print Capture Tab (Main Window)

Any potential faxes sent from the print to FaxFinder option will be here, ready for additions, setting

changes or scheduling. There are two columns to this field: Document (the name of the document ready

to be scheduled) and Pages (the total number of pages in the document). To access the options for

items in the print capture area, right-click on the document name.

Fax

Selecting this will open the Fax Scheduler window allowing you to change any parameters as needed

and schedule your fax for a specific time or send it immediately. The Fax Schedule screen is covered

earlier in this chapter.

Delete

Selecting this will permanently delete the document from the client software. Entries in the Print

Capture tab will remain until they are manually deleted using this command.

View

Selecting the view option will open the document (a TIFF file) with the program associated with its

extension type; if you chose to associate TIFF files with the TIFF Viewer during installation, that is the

program that will open the file.
