MultiModemBA User Guide

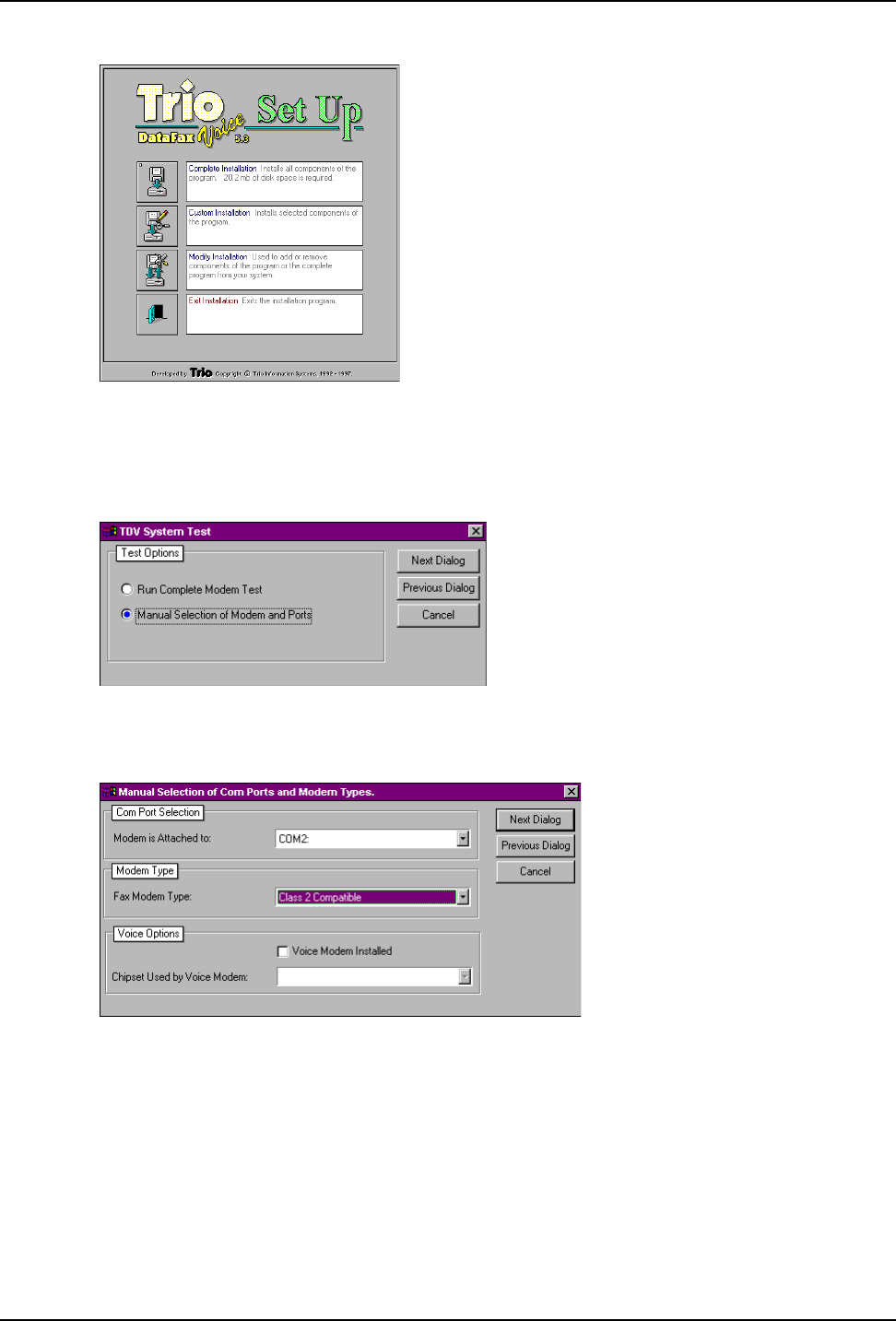

10 Click Complete Installation and the installation introduction is presented.
11 Click Next Dialog and follow the on-screen instructions to load the software.
Once the software has finished loading, the following dialog is displayed:
12 Choose Manual Selection of Modem and Ports, then click Next Dialog. The following dialog is
displayed:
13 In the Com Port Selection group select the COM port, on which your modem is installed, from
the drop-down list.
14 In the Modem Type group select Class 2 Compatible from the drop-down list.
15 Click Next Dialog. The Phone Numbers and Prefixes dialog is displayed.
