Chapter 7: Operation and Maintenance

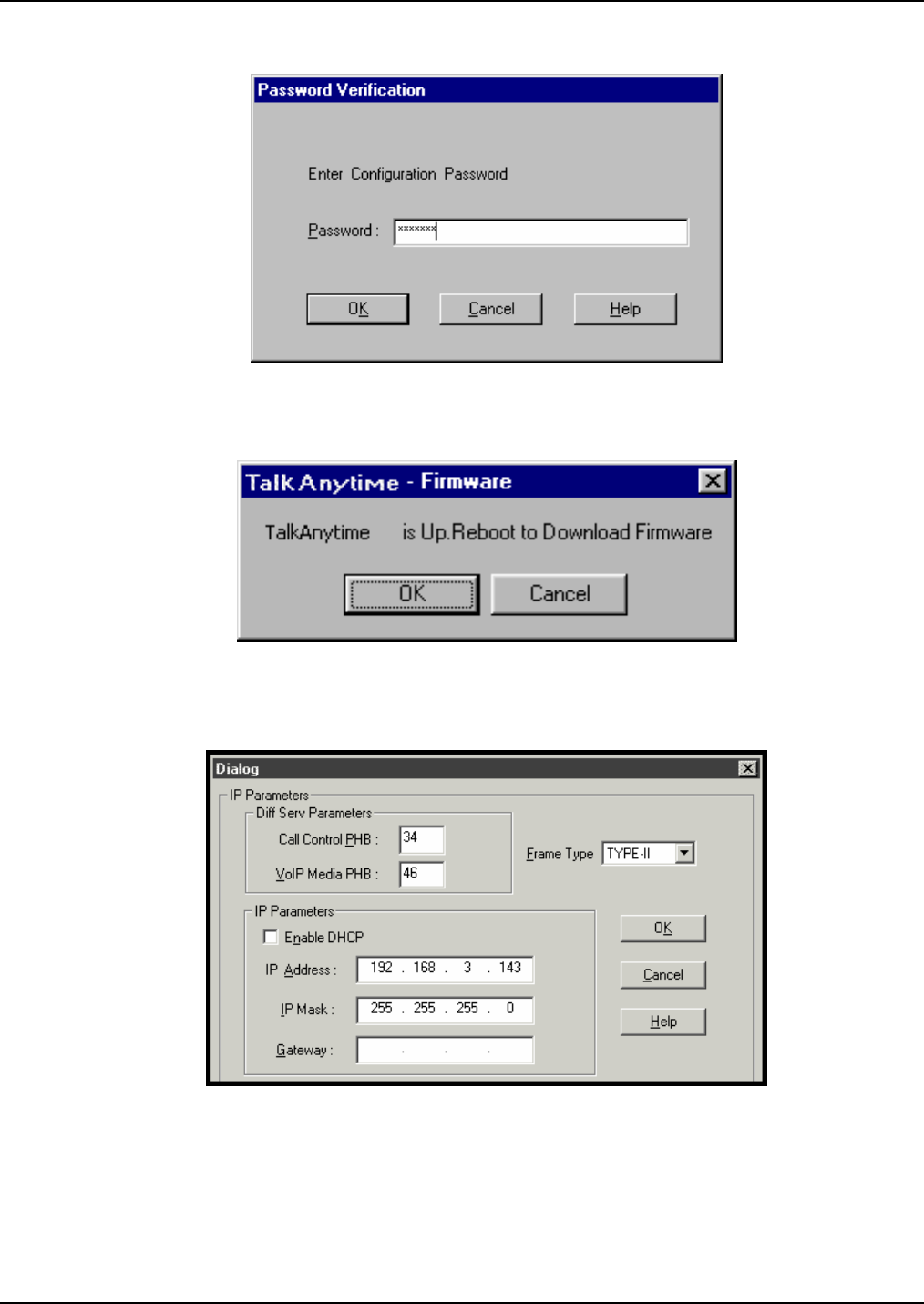

3. If a password has been established, the Password Verification screen will appear.

Type in the password and click OK.

4. The MVP____- Firmware screen appears saying “TalkAnytime [model number] is up. Reboot to

Download Firmware?”

Click OK to download the factory defaults.

The “Boot” LED on the TalkAnytime will light up and remain lit during the file transfer process.

5. After the PC gets a response from the TalkAnytime, the Dialog – IP Parameters screen will appear.

The user should verify that the correct IP parameter values are listed on the screen and revise them if

necessary. Then click OK.

Multi-Tech Systems, Inc. TalkAnyTime User Guide 155
